  2. Readytosky 80A ESC 2-6S Brushless ESC Speed Controller for RC Drone

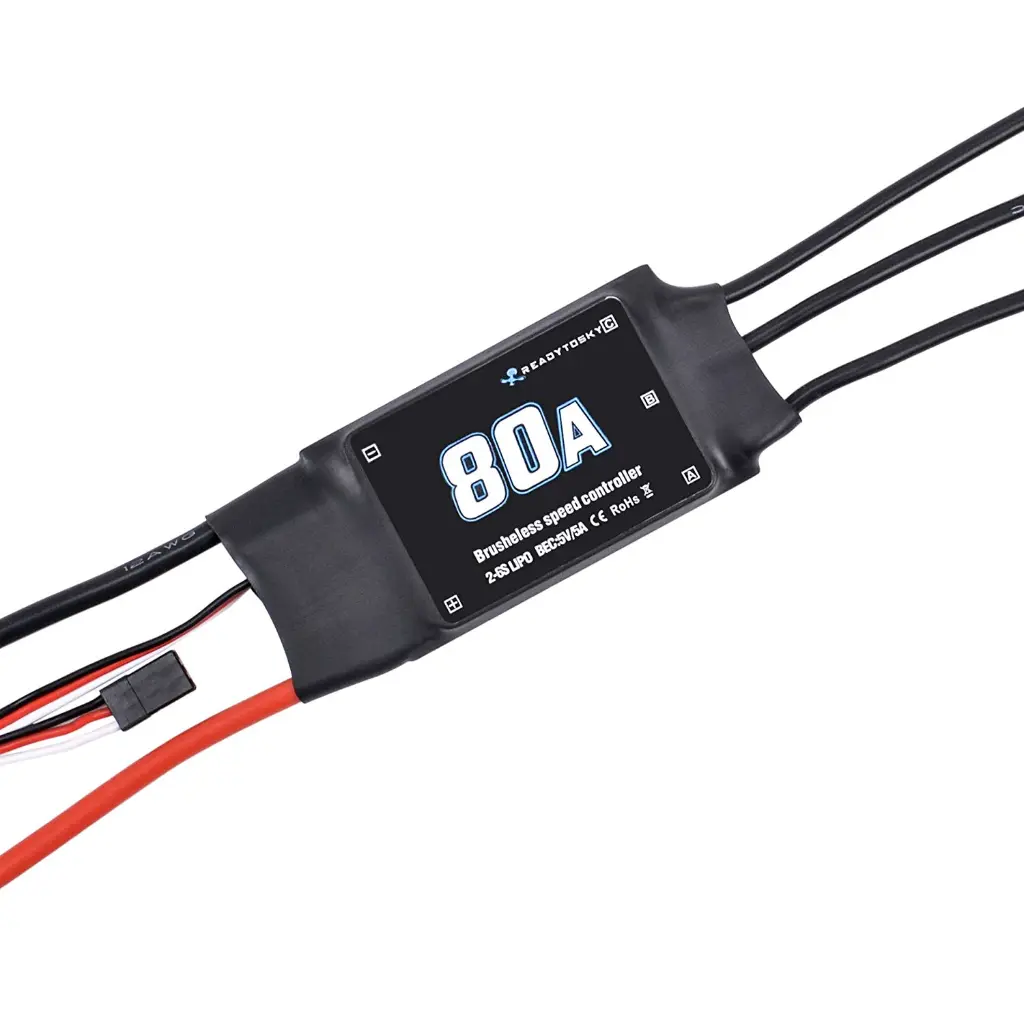

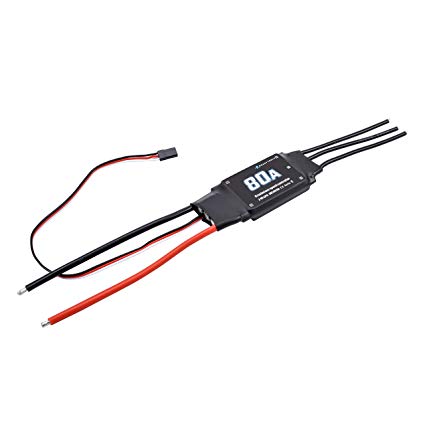

Readytosky 80A ESC 2-6S Brushless ESC Speed Controller for RC Drone

https://docdrones1.odoo.com/web/image/product.template/161/image_1920?unique=1abc792
(0 review)

SKU - 1185

  1. Security power function: When the power is turned on, regardless of the throttle stick at any position will not start the motor immediately to prevent personal injury
  2. Throttle range calibrated function: to adapt the throttle differences between different strokes, improve the linearity of throttle response
  3. Programmed project (available throttle stick or card LED parameter settings):
    1. Brake setting: No brake / with brake
    2. Battery Type: Lithium battery / NiMH
    3. Low Voltage Protection Mode: Soft Shutdown / hard off
    4. Low Voltage Protection Threshold: low / medium / high
    5. start mode: Normal / Soft / Super-soft and start
    6. Timing: low / medium / high
    7. Restore factory defaults
  4. Comprehensive protection features :
    1. Under-voltage protection: the program set by the user when the battery voltage is below the protection threshold, ESC automatically reduces the output power
    2. Overvoltage Protection: input voltage exceeds the input range are not allowed to start, automatic protection, also issued a hasty “beep” Warning
    3. Overheat protection: built-in temperature detection circuit that automatically reduces the output power ESC temperature is too high
    4. Remote signal loss protection: remote control signal is lost for 1 second to reduce the power, and then have two seconds to turn off without the remote control signal output

₹ 1,859.00 1859.0 INR ₹ 1,859.00 Tax Excluded

₹ 1,859.00 Tax Excluded

Not Available For Sale

(₹ 1,859.00 / Units)
  • Brand

This combination does not exist.

Contact Us
Brand: RTS

Terms and Conditions
Shipping: 2-3 Business Days

ReadytoSky 80A 2-6S ESC is specifically made for quadcopters and multi-rotors. Which provides faster and better motor speed control giving better flight performance compared to other available ESCs.

ReadytoSky 80A 2-6 ESC comes with a multi-integrated special program, fast throttle response, surpasses all kinds of open-source software. Firmware was optimized specifically integrated circuitously for the disc motor, and it has very good compatibility and this ESC is compatible with 2-6s Lipo Battery.

Due to ultra-low resistance MOSFET, it has a strong flow capacity. With MOSFET special driver integrated circuit, its performance and stability far surpass the driving circuit with discrete components built.

SpecificationsPackage Includes

Specifications

  • Model :  Readytosky 80A ESC
  • BEC :  5V/5A
  • Operating Voltage (VDC) :  2 - 6s LiPo
  • Throttle signal refresh rate (Hz) :  50 ~ 432.
  • Maximum speed :
    210000 2-pole motor rev / min
    6-pole motors 70,000 rev / min
    12 pole motors 35,000 rev / min
  • Continuous Current (A) :  80
  • Burst Current (A) : 100
  • Dimensions (L x W x H) : 93 x 14 x 13mm
  • Weight (g) : 93
  • Shipping Weight : 0.095 kg
  • Shipping Dimensions : 13 × 9 × 2 cm

Package Includes

  • 1 x Readytosky 80A ESC 2-6S Brushless ESC Speed Controller for RC Drone.
