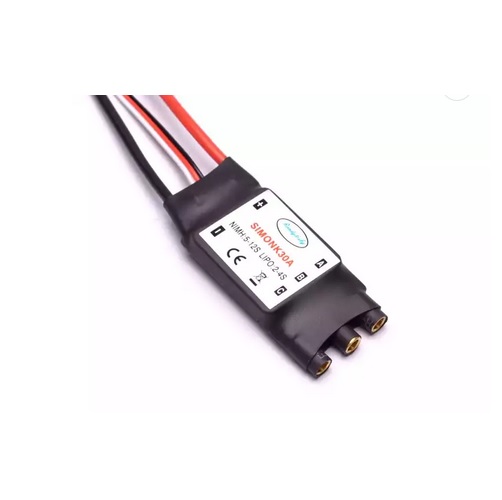

ReadytoSky Simonk 30A ESC with Banana Connector (Female)

ReadytoSky Simonk 30A ESC with Banana Connector (Female)

https://docdrones1.odoo.com/web/image/product.template/160/image_1920?unique=1abc792
(0 review)

SKU - 1184

  1. Highest efficiency 100% N-FET design.
  2. Highest accuracy with Crystal Oscillator (Temperature won't affect the PWM operating range like other cheap ESC's).
  3. No low voltage cutoff, because any cutoff in a multirotor = crash.
  4. No over temp cutoff, because any cutoff in a multirotor = crash.
  5. Super high refresh rate, no buffering of the input signal, resulting in more than 490Hz response rate.
  6. 16KHz motor frequency, giving fastest response of the motor, and quietest operation as well (no 8KHz squeal).
  7. Super simple, foolproof operation! Nothing to program other than the throttle range.

₹ 499.00 499.0 INR ₹ 499.00 Tax Excluded

₹ 499.00 Tax Excluded

Not Available For Sale

(₹ 499.00 / Units)
  • Brand

This combination does not exist.

Contact Us
Brand: RTS

Terms and Conditions
Shipping: 2-3 Business Days

This is a ReadytoSky Simonk 30A ESC with Banana Connector (Female).

An ESC isolates the high-power side (battery and motor) from the signal side (connection to the receiver) by internally transmitting the receiver throttle signal from the input side to the output side of the ESC through an optocoupler.

ReadytoSky Simonk 30A ESC is specifically made for quadcopters and multi-rotors. Which provides faster and better motor speed control giving better flight performance compared to other available ESCs.

ReadytoSky Simonk 30A ESC comes with a multi-integrated special program, fast throttle response, and surpasses all kinds of open-source software. Firmware was optimized specifically integrated circuitously for the disc motor, and it has very good compatibility this ESC is compatible with 2-6s Lipo Battery.

Due to ultra-low resistance MOSFET, it has a strong flow capacity. With MOSFET special driver integrated circuit, its performance and stability far surpass the driving circuit with discrete components built.

SpecificationsPackage Includes

Specifications

  • Model : Simonk 30A
  • BEC : 5V/2A (Linear mode)
  • Operating Voltage (VDC) :  2 - 4s
  • Continuous Current (A) :  30
  • Burts Current (A) : 35
  • Dimensions (L x W x H) :  32 x 24 x 7mm
  • Connector :  Banana Connector (Female)
  • Connector size :  3.5mm
  • Weight (g) : 23
  • Shipping Weight : 0.025 kg
  • Shipping Dimensions : 11 × 8 × 2 cm

Package Includes

  • 1 x ReadytoSky Simonk 30A ESC with 3.5mm Banana Connector (Female)
