  2. Hobbywing Xrotor 40A ESC for DIY Multicopter Drone

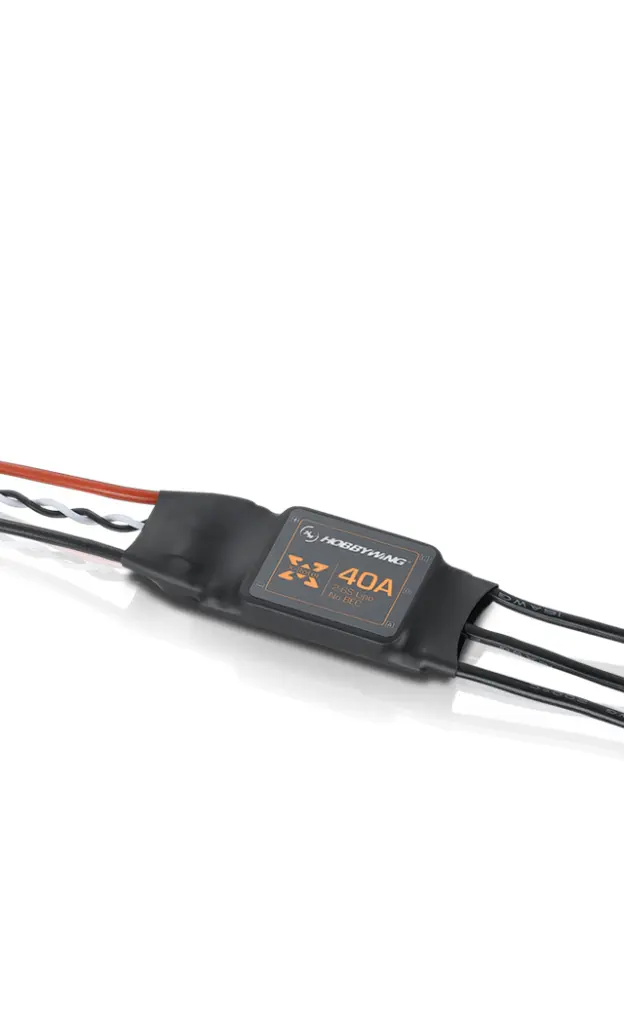

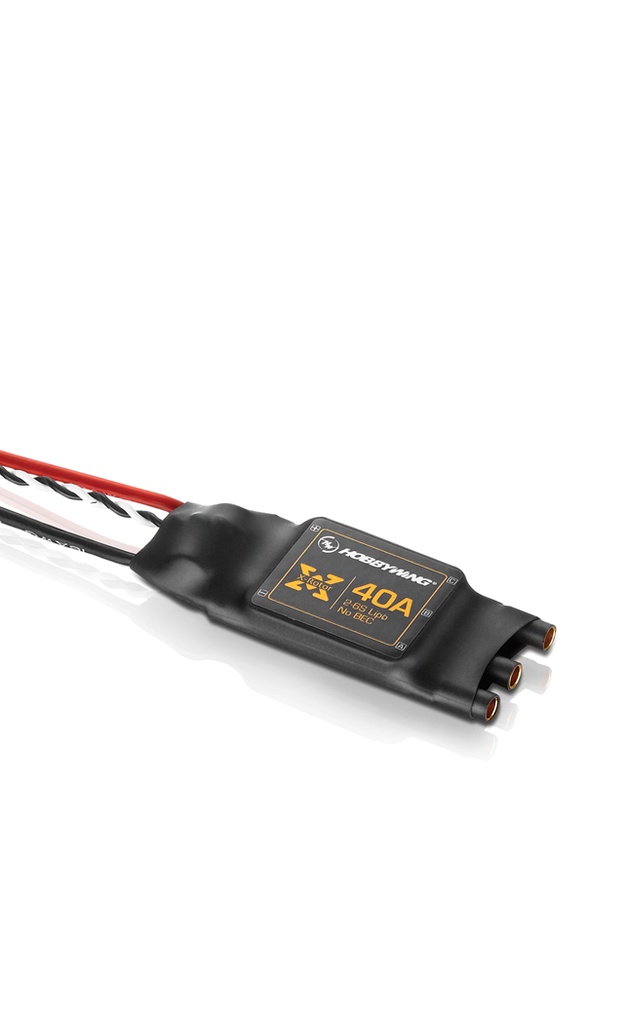

Hobbywing Xrotor 40A ESC for DIY Multicopter Drone

https://docdrones1.odoo.com/web/image/product.template/158/image_1920?unique=1abc792
(0 review)

SKU - 1182

  1. Using a Multintegrated circuitopter special program, fast throttle response surpasses all kinds of open source software.
  2. Firmware was optimized to specify integrated circuitously for disc motor, and it has very good compatibility.
  3. Highly intelligent, strong adaptive capacity, reserve the timing setting item (height/middle timing, easy to use.
  4. A throttle signal line is a twisted wire to reduce crosstalk within the transmission signal generated by the copper, so that more stable flight.
  5. Supports refresh rates up to 621Hz throttle signal, compatible with various flight controllers. (Note: the throttle signal over 500Hz are all non-standard throttle signals)
  6. Using MOSFET special driver integrated circuit, its performance and stability far surpass the driving circuit with discrete components built.
  7. Ultra-low resistance MOSFET, strong flow capacity.

₹ 2,699.00 2699.0 INR ₹ 2,699.00 Tax Excluded

₹ 2,699.00 Tax Excluded

Not Available For Sale

(₹ 2,699.00 / Units)
  • Brand

This combination does not exist.

Contact Us
Brand: Hobbywing

Terms and Conditions
Shipping: 2-3 Business Days

Hobbywing XRotor 40A APAC Brushless ESC 2-6S for RC multicopters.Using Multicopter special program, fast throttle response surpasses all kinds of open source software; Firmware is optimized specifically for disc motor, and it has very good compatibility. The ESC is highly intelligent, strong adaptive capacity, reserve the timing setting item (height/middle timing) easy to use.

The throttle signal line is twisted wire to reduce crosstalk within the transmission signal generated by the copper so that a more stable flight; Supports refresh rates up to 621Hz throttle signal, compatible with various flight controllers.

Manual

SpecificationsPackage Includes

Specifications

  • Model : Xrotor 40A
  • BEC : No
  • Operating Voltage (VDC) :  2 - 6s LiPo
  • Supports Software : Hobbywing Xrotor
  • Continuous Current (A) :  40
  • Burst Current (A) : 60 (10s)
  • Dimensions (L x W x H) :  72 x 26 x 6mm
  • Throttle Range Calibration : Supported
  • Stick Programming : Supported
  • DEO : Not Supported
  • OneShot Mode : Not Supported
  • Timing : Supported
  • Light Color : Not Supported
  • Motor Rotation : Not Supported
  • Weight (g) : 26
  • Shipping Weight : 0.007 kg
  • Shipping Dimensions : 10 × 6 × 1 cm

Package Includes

  • 1 x Hobbywing Xrotor 40A ESC for DIY Multicopter Drone
