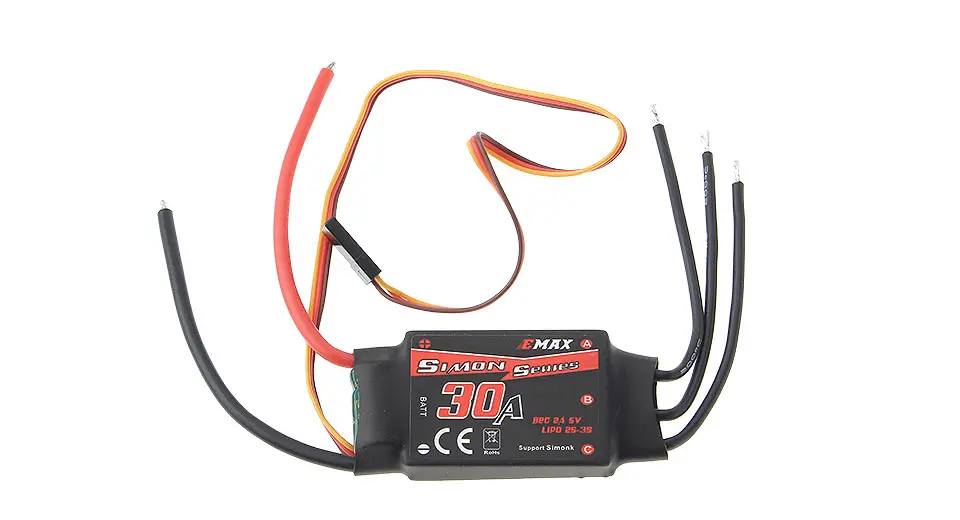

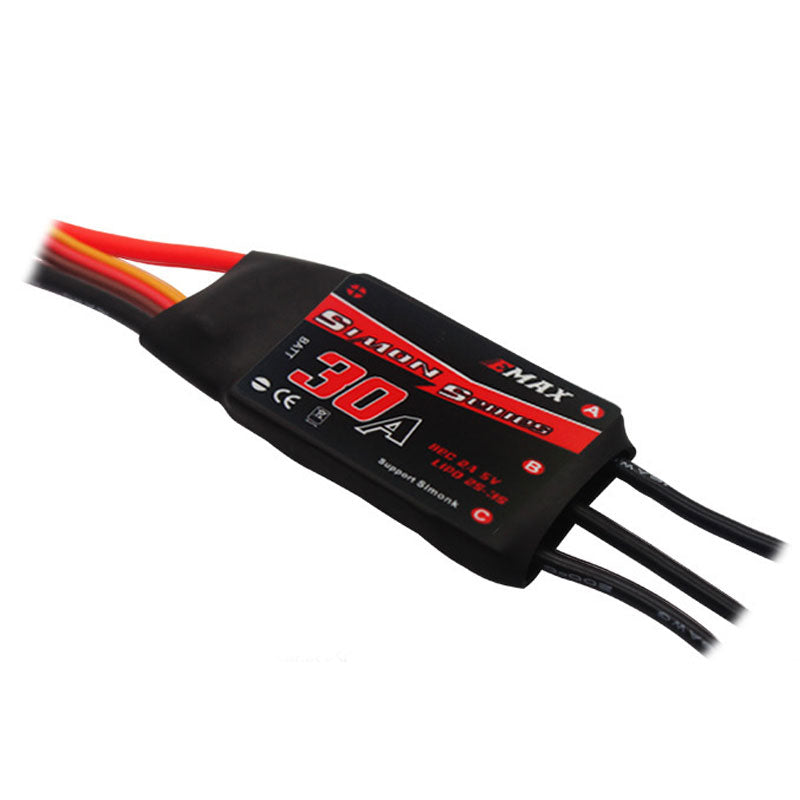

Emax SimonK Series Multirotor 30A Brushless ESC

(0 review)

SKU - 1173

Based on SimonK firmware, further optimized to the perfect drive performance.
Low-voltage protection, over-heat protection, and throttle signal loss protection.
Separate power supply for MCU and BEC, enhancing the ESC’s ability to eliminate magnetic interference.
Parameters of the ESC can be set via a program card or transmitter.
Throttle range can be set to be compatible with different receivers.
Equipped with built-in linear BEC or switch BEC.
Max speed: 210,000 rpm for 2-pole, 70,000 rpm for 6-pole, 35,000 rpm for 12-pole.

₹ 1,939.00 1939.0 INR ₹ 1,939.00 Tax Excluded

₹ 1,939.00 Tax Excluded

Brand

This combination does not exist.

Add to cart Buy now

Brand: Emax

Terms and Conditions
Shipping: 2-3 Business Days

Emax SimonK Series Multirotor 30A Brushless ESC (Original) is a brushless dc motor speed controller. The low output resistance greatly enhances power stability, and this will improve the great battery life. Emax SimonK Series Multirotor 30A Brushless ESC is programmed to start the brushless dc motor. This ESC has a greater current handling capacity which is 30A continuous and the peak current is 40A for the last 10 seconds only.

Manual Startup Instructions

Specifications

Model : SimonK 30A
Operating Voltage (VDC) : 2 - 3s LiPo
BEC Mode : Linear
BEC Output : 2A/5V
Programmable : Yes
Continuous Current (A) : 30
Burst Current (A) : 40 (10s)
Dimensions (L x W x H) : 52 x 26 x 7
Weight (g) : 28
Shipping Weight : 0.03 kg

Shipping Dimensions : 6 × 3 × 1 cm

Package Includes

1 x Emax SimonK Series Multirotor 30A Brushless ESC module.
