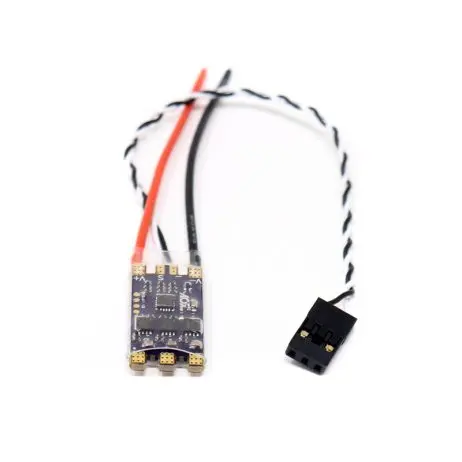

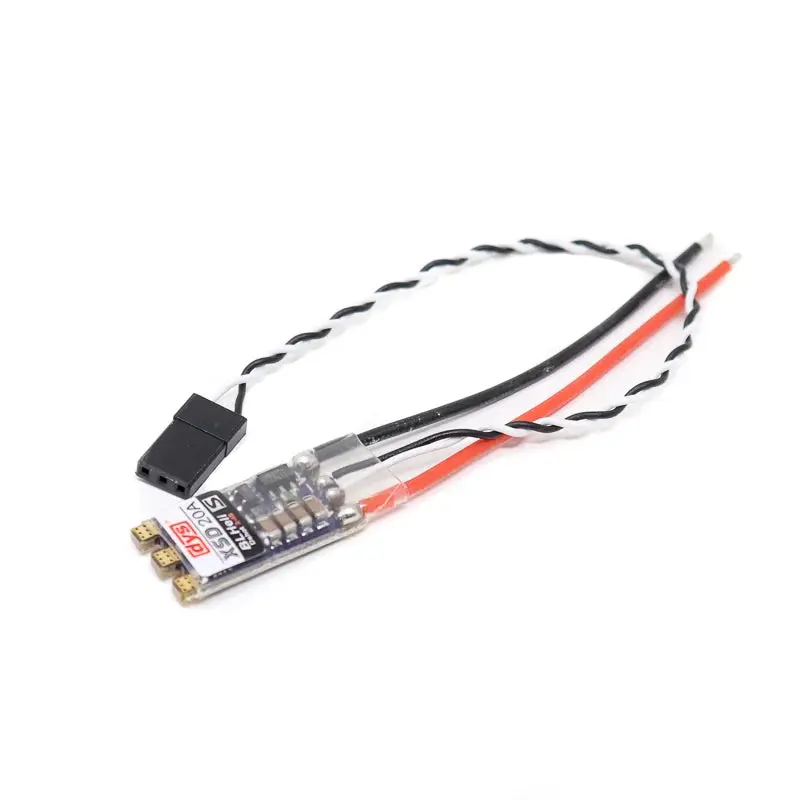

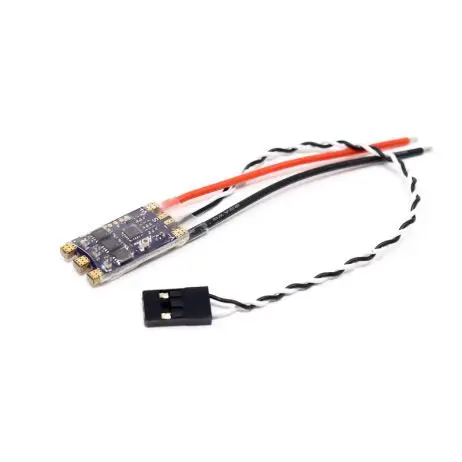

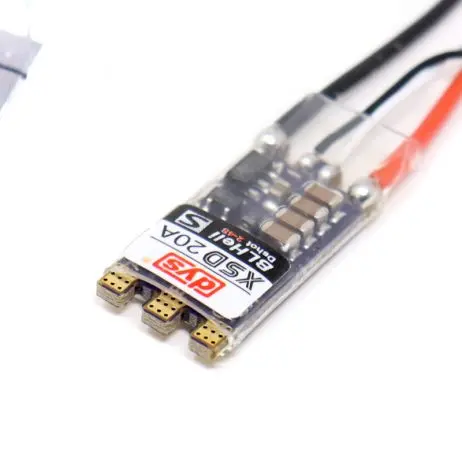

DYS 20A Brushless ESC for FPV Drone

(0 review)

SKU - 1168

Utilizes high-performance EFM8BB21 50MHz MCU
12 FET Design
High-current burst rating
High-Resolution Throttle steps
Supports: BLheli_S & Dshot600, Dshot300 – faster than Oneshot
Dshot ESCs don’t require an ESC calibration
Firmware upgradable via signal wire (works with USB Linker for XM series)
Supports Motors with super high KV (EFM8BusyBee 50MHz can handle up to 500k eRPM)

₹ 1,200.00 1200.0 INR ₹ 1,200.00 Tax Excluded

₹ 1,200.00 Tax Excluded

Brand

This combination does not exist.

Add to cart Buy now

Brand: DYS

Terms and Conditions
Shipping: 2-3 Business Days

Take advantage of the latest DYS XSD20A ESC Solder Version BLHeli_S development with these DShot capable ESC’s. The DYS XSD series speed controllers (ESC) have been designed for high-speed motors, which make them ideal for racing drones. The ESCs utilize a high-performance Silabs EFM8BB21 microprocessor for smooth response and high-resolution throttle steps. They also come with BLHeliS firmware pre-flashed and support DShot300 or DShot600. Firmware can be upgraded by signal wire using a USB Linker.

Properties

Running current : 20A (Output: Continuous 20A, Burst 25A up to 10 Secs)
Input Voltage : DC 6 -16.8V (2-4S )
BEC : 5V/2A
Dimensions (L x W x H) : 25 x 15 x 4mm

Specifications

Model : XSD20A
Operating Voltage (VDC) : 2 - 4s LiPo
Supports Software : Dshot300 / Dshot600
MCU : Silabs EFM8BB21
Continuous Current (A) : 20
Color : Yellow
Length (mm) : 36
Width (mm) : 26
Height (mm) : 7
Weight (g) : 32
Shipping Weight : 0.007 kg

Shipping Dimensions : 10 × 6 × 1 cm

Package Includes

1 x DYS 20A Brushless ESC for FPV Drone
