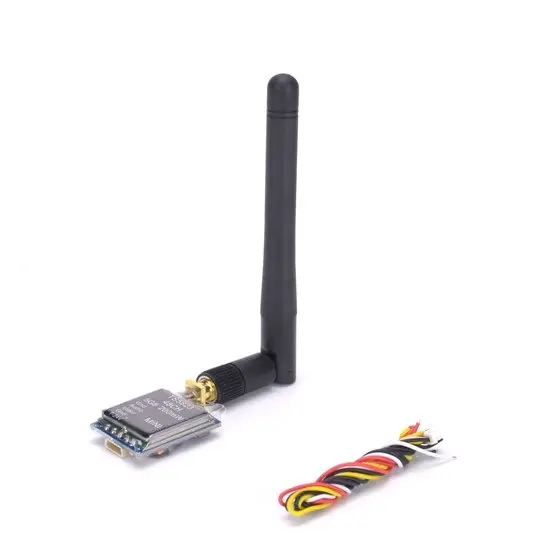

TS5823 200mw 40CH Mini Transmitter

https://docdrones1.odoo.com/web/image/product.template/167/image_1920?unique=1abc792
(0 review)

SKU-1165

  1. Micro-sized and lightweight.
  2. Perfect for use with small models
  3. It has transmitter frequency of 5645-5945MHz with 200mW power output
  4. It features transmitting distance of 1500m in open area.

₹ 1,259.00 1259.0 INR ₹ 1,259.00 Tax Excluded

₹ 1,259.00 Tax Excluded

Not Available For Sale

(₹ 1,259.00 / Units)
  • Brand

This combination does not exist.

Contact Us
Brand: RTS

Terms and Conditions
Shipping: 2-3 Business Days

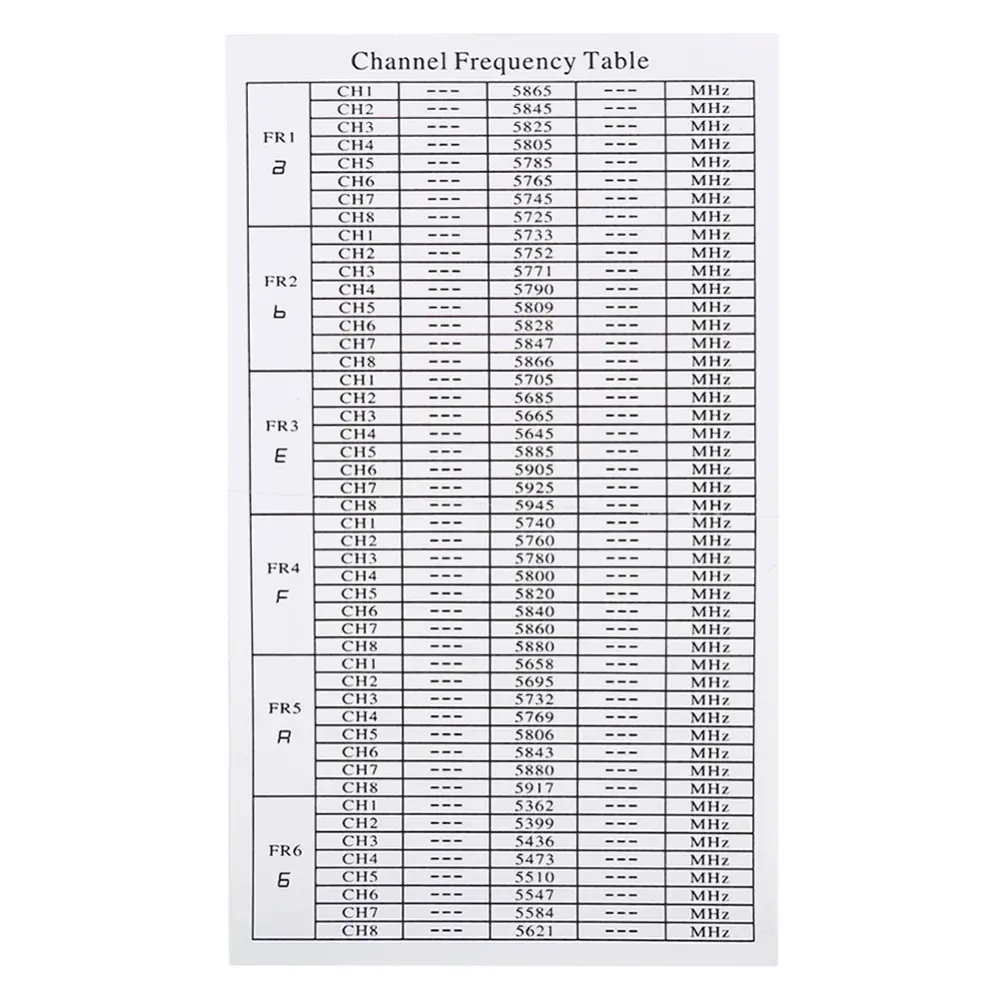

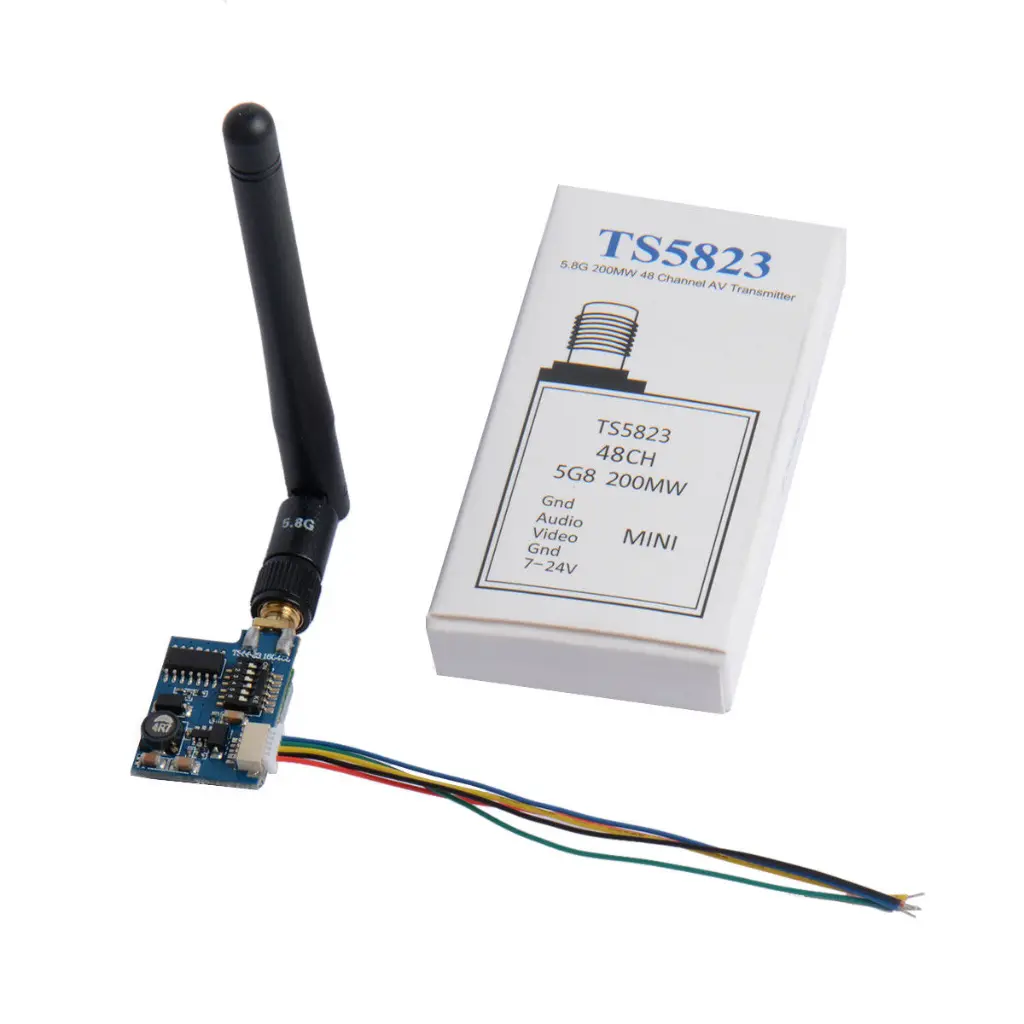

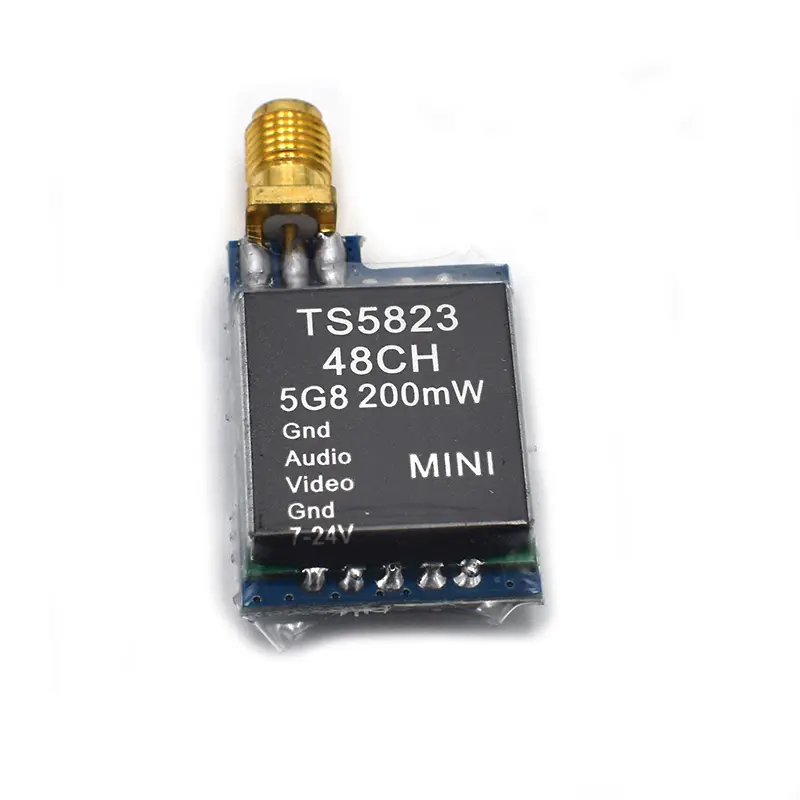

TS5823 200mw 40CH Mini Transmitter packs 200mW of ultra-clean 5.8GHz power in a micro-sized video/audio transmitter! A must-have for those looking to save size and weight while still getting good performance. The TS5823 is transmitting a full range of 48 channels and only weighs 10g.

It’s perfect for a wide range of aircraft, especially small models and 350 size multi-rotors such as Quantum Nova, DJI Phantom, QR X350 and more!


SpecificationsPackage Includes

Specifications

  • Operating Current (A) : 0.19
  • Voltage(V) : 7 to 24
  • Antenna Type : RP-SMA, SMA
  • Video Bandwidth : 8M
  • Audio Bandwidth : 6.5M
  • Operating Temperature (°C) : -10 to 85
  • Module Size (LxWxH) mm : 40 x 20 x 8
  • Antenna Diameter(mm) : 8
  • Antenna Length(mm) : 106
  • Weight (g) : 15
  • Shipping Weight : 0.018 kg
  • Shipping Dimensions : 10 × 4 × 3 cm

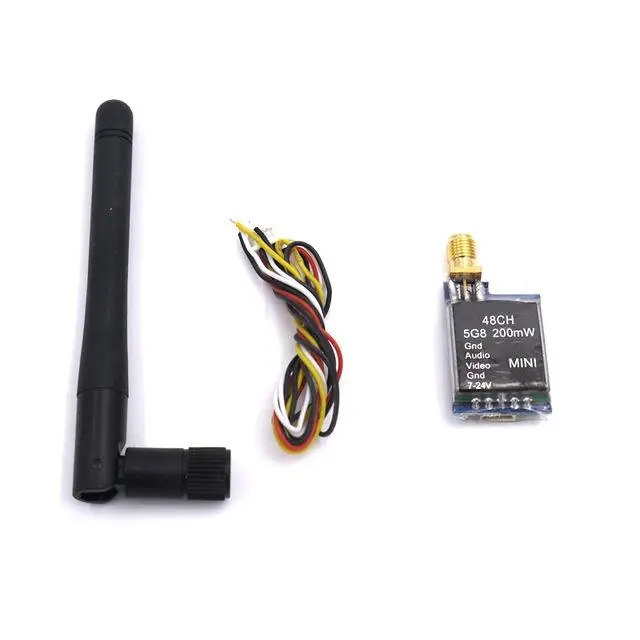

Package Includes

  • 1 x TS5823 Mini 40CH 200MW Transmitter module
  • 1 x Threaded Detachable Antenna
  • 1 x AV Cable
