Specifications
- Model : 2306.5
- Motor KV : 1900
- Magnetic Pole : 9N12P
- Magnetic Steel : N52H
- Stator : Kawasaki 1200
- Rotor : 7075
- Bearings : ISC
- Maximum Current (A) : 47.7
- Maximum Power (W) : 1145
- Input voltage : 5 - 6s

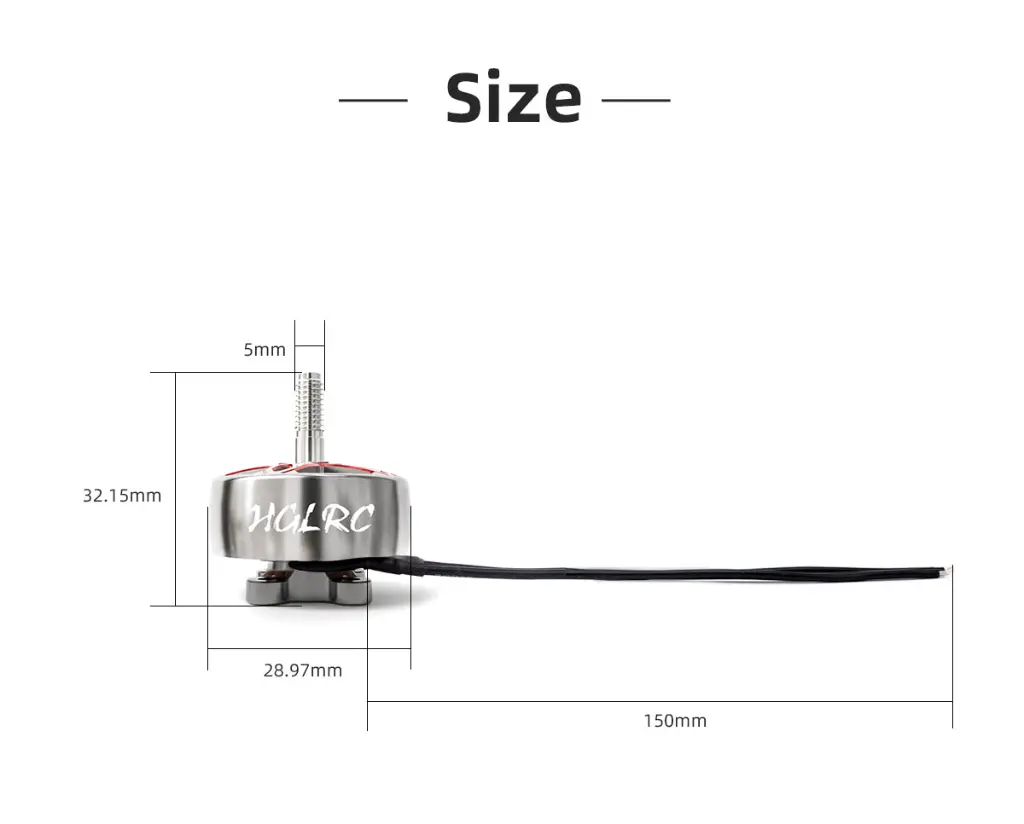

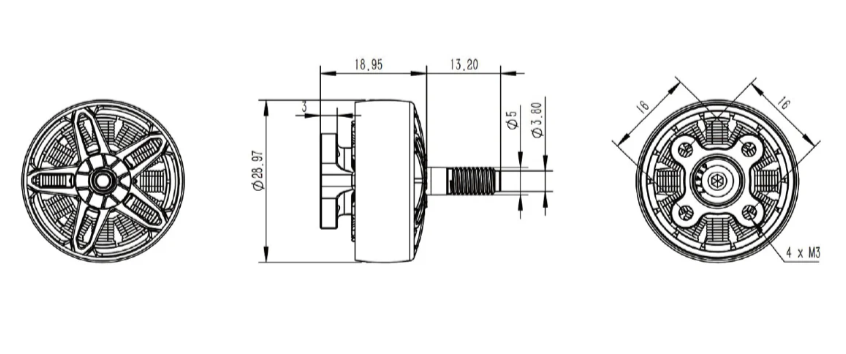

- Motor size : Φ28.97 x 32.15mm
- Mounting hole : 16 × 16
- Weight (g) : 34.2
- Shipping Weight : 0.047 kg
- Shipping Dimensions : 6 × 5 × 5 cm

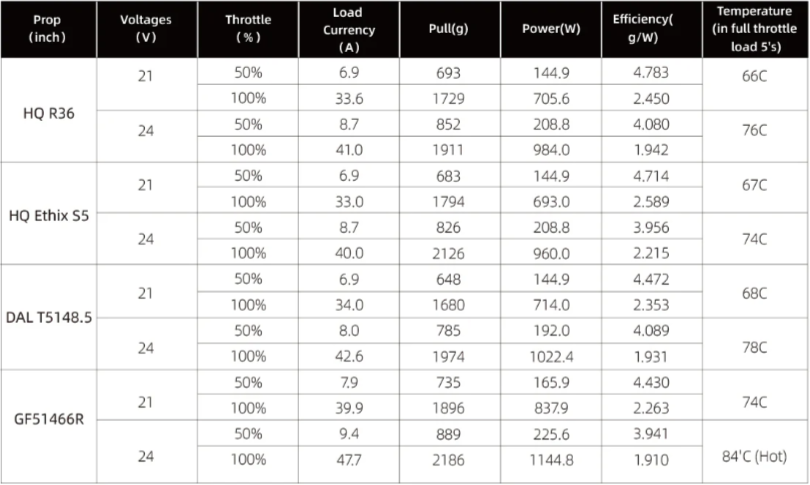

Mechanical Efficiency Table

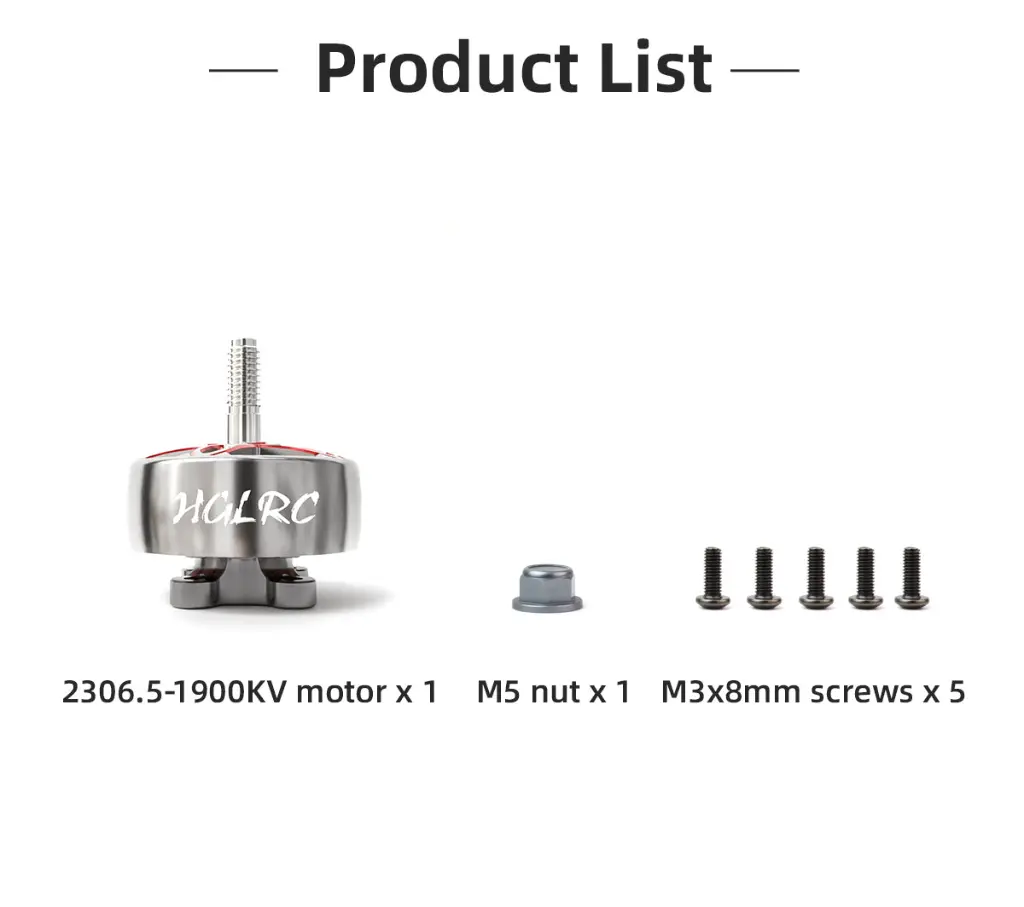

Package Includes
- 1 x HGLRC SPECTER 2306.5-1900KV
- 1 x M5 anti-loosening nut
- 5 x M3x8mm screw
Recommended
- Propellers (Inch) : 5 - 6
