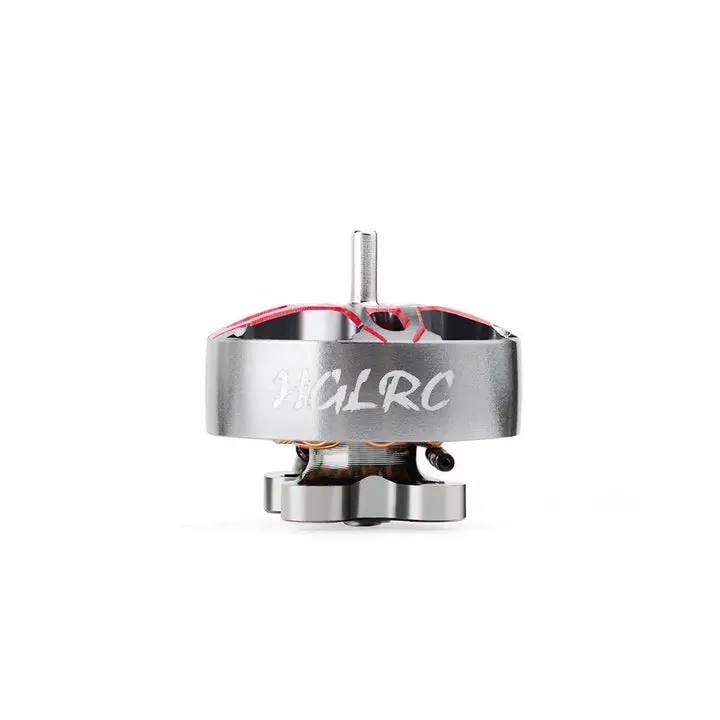

HGLRC SPECTER 1303.5 5500KV Brushless Motor

https://docdrones1.odoo.com/web/image/product.template/118/image_1920?unique=1abc792
(0 review)

SKU - 1111

  1. Brand new rotor appearance design, anodized two-color process.
  2. 7075 aviation aluminum material, high-strength one-piece rotor.
  3. Customized N52H curved magnetic steel, strong magnetism, high torque.
  4. Super high temperature resistant 200° copper wire winding, the motor runs more stably.
  5. Imported Kawasaki silicon steel sheets, low loss stator, reduce heat generation and improve efficiency.
  6. New and optimized tuning, maintain high torque at low speed, linear power output when the throttle changes rapidly, and precise and fast response when turning.
  7. Alloy Steel Outlet Shaft, high strength and reduce the weight of the fuselage.
  8. Suitable for 2-2.5 Tiny drone or 2-3 toothpick drone.

₹ 1,440.00 1440.0 INR ₹ 1,440.00 Tax Excluded

₹ 1,440.00 Tax Excluded

Not Available For Sale

(₹ 1,440.00 / Units)
  • Brand

This combination does not exist.

Contact Us
Brand: HGLRC

Terms and Conditions
Shipping: 2-3 Business Days

Introducing the SPECTER 1303.5 5500KV Brushless Motor, a powerhouse for micro drones. Its brand-new rotor design, crafted from high-strength 7075 aviation aluminum, features customized N52H magnetic steel for exceptional torque. The 200°C copper wire winding and Kawasaki silicon steel sheets ensure stability and efficiency, while new tuning provides high torque at low speed and precise responses. With an alloy steel outlet shaft, this motor is robust yet lightweight, ideal for 2-2.5 Tiny drones or 2-3 toothpick drones. Weighing 7.15g, it’s a compact solution for dynamic flight experiences


SpecificationsMechanical Efficiency Table Package IncludesRecommended

Specifications

  • Model : 1303.5
  • Motor KV : 5500
  • Magnetic Pole :  9N12P
  • Magnetic Steel : N52H
  • Stator : Kawasaki 1200
  • Rotor : 7075
  • Bearings : ISC
  • Maximum Current (A) :  8.9
  • Maximum Power (W) :  130
  • Input voltage :  2 - 4s

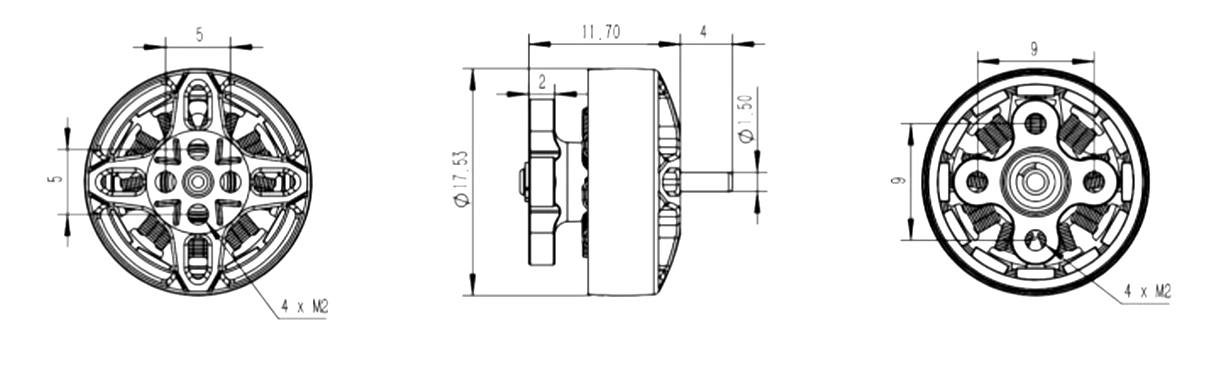

  • Motor size :  Φ17.53m x 11.7mm
  • Mounting hole :   4*M2-∅9
  • Weight (g) :  7.15
  • Shipping Weight :  0.013 kg
  • Shipping Dimensions :  4 × 3 × 4 cm

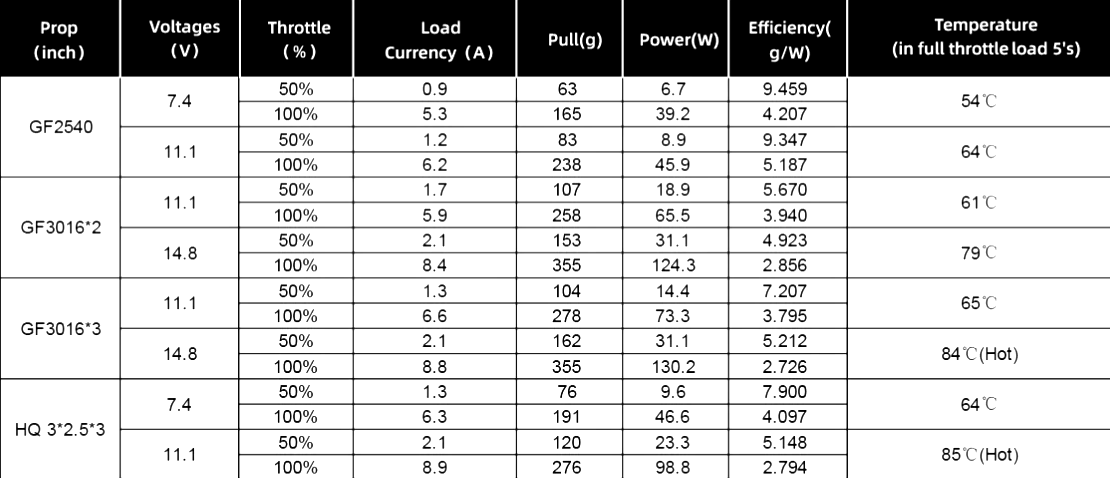

Mechanical Efficiency Table

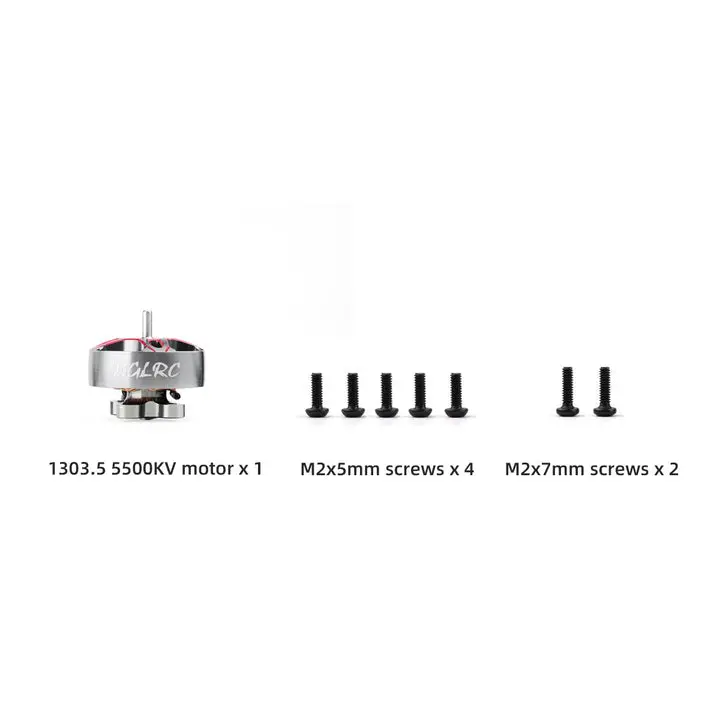

Package Includes

  • 1 x HGLRC SPECTER 1303.5 5500KV brushless motor
  • 4 x M2x5mm screws
  • 2 x M2x7mm screws

Recommended

  • Propellers (Inch) :  2 - 3
  • ESC : > 10A
