HGLRC Wind5 Lite True X Frame Kit HD Vista

https://docdrones1.odoo.com/web/image/product.template/31/image_1920?unique=1abc792
(0 review)

SKU : 1022

  1. Flight control installation damping system
  2. 4mm protective bar
  3. SMA antenna Mount
  4. Camera Mount
  5. Anti-turtle Shark Fin
  6. The quadcopter has compact dimensions of 148 * 148mm, making it suitable for various applications.
  7. The top plate features a thickness of 2mm, providing a balance of strength and weight for the frame.
  8. The bottom plate is also constructed with a thickness of 2mm, contributing to the overall structural integrity of the quadcopter.
  9. The middle plate has a thickness of 2.5mm, enhancing the durability and stability of the frame.
  10. The space between the top and middle plates is 32mm, allowing ample room for additional components and configurations.
  11. Installation holes are designed with dimensions of 20×20/30.5×30.5mm, providing flexibility for different flight controller sizes and mounting options.
  12. The frame supports a camera with dimensions of 19mm, offering compatibility with various FPV camera options.

₹ 7,599.00 7599.0 INR ₹ 7,599.00 Tax Excluded

₹ 7,599.00 Tax Excluded

Not Available For Sale

(₹ 7,599.00 / Units)
  • Brand

This combination does not exist.

Contact Us
Brand: HGLRC

Terms and Conditions
Shipping: 2-3 Business Days

The HGLRC Wind5 Lite True X Frame Kit with HD Vista is a top-notch package designed for high-performance FPV drone enthusiasts. This kit includes a robust True X frame optimized for stability and agility during flights. The integrated HD Vista system ensures crystal-clear digital video transmission for immersive flying experiences. With HGLRC’s renowned quality, this kit provides an exceptional foundation for building a cutting-edge FPV drone capable of delivering impressive visuals and responsive control.

SpecificationPackage IncludesRecommended

Specification

  • Model :  Wind5 Lite Frame Kit
  • Material : 3K Carbon Fiber
  • Type : 5" frame
  • Wheelbase  : 208mm
  • Top plate thickness : 2mm
  • Bottom plate thickness : 2mm
  • Middle plate thickness : 2.5mm
  • Arm Thickness : 5mm
  • Top and middle plate spacing : 32mm
  • Installation holes : 20x20/30.5x30.5mm
  • Support camera : 19mm
  • Motor mounting holes :  ∅16
  • Weight  :  80g
  • Size  : 148*148mm
  • Shipment Weight :  0.223 kg
  • Shipping Dimensions :  22 × 14 × 4.5 cm

Package Includes

  • 1 x 2mm top plate
  • 1 x 2mm bottom plate
  • 1 x 2.5mm middle plate
  • 4 x 5mm arm
  • 2 x 4mm protective bar
  • 4 x M3*32mm black aluminum column
  • 2 x M3*30mm black aluminum column
  • 4 x round head screw M2*35
  • 4 x round head screw M3*16
  • 12 x round head screw M3*12
  • 1 x Sink head screw M3*10
  • 2 x round head screw M3*10
  • 8 x round head screw M3*8
  • 2 x round head screw M2*4
  • 4 x M2 Self-tightening nut
  • 4 x M3*6.6 shock absorber ball
  • 1 x Battery cable tie 15x250mm
  • 1 x Battery cable tie 20x250mm
  • 1 x Battery Anti-slip tape
  • 2 x strap

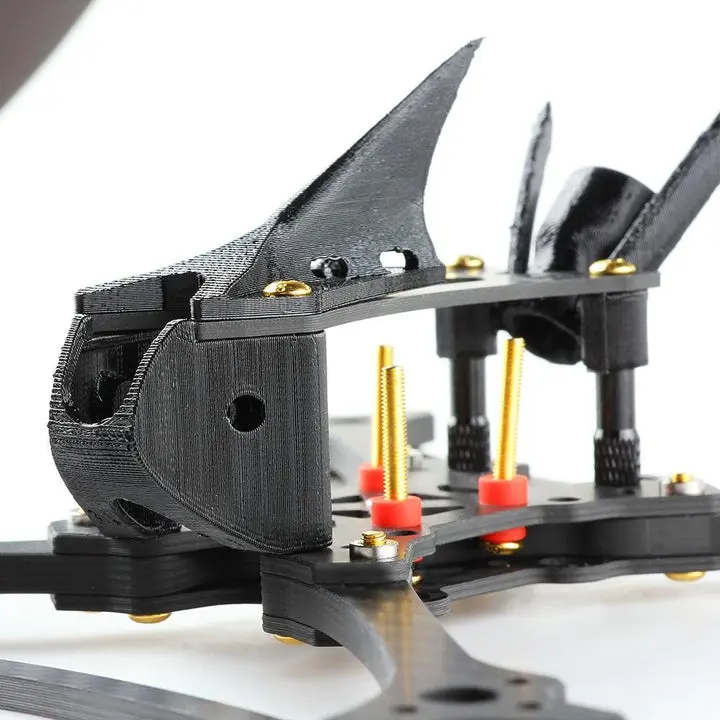

  • 1 x Anti-turtle Shark Fin
  • 1 x TPU hammer antenna mount

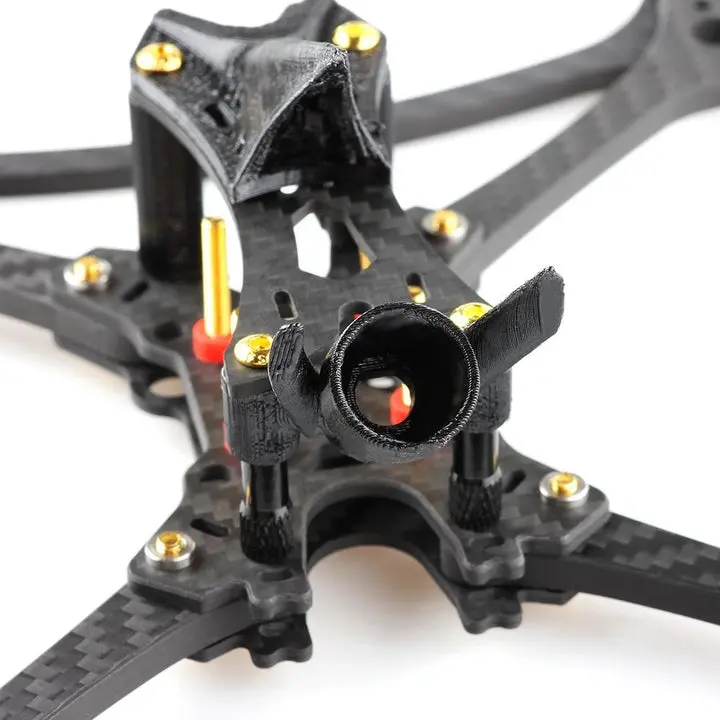

  • 1 x TPU Camera Nebula Pro Mount
  • 1X Camera Mount

Recommended

  • Propeller :   5 - 5.2 Inch
  • Battery :  4S 1300mAh ~ 6S 1800mAh
  • Flight Controller :  Kiss/F4/F7 FC
  • ESC :  35A-65A
  • Camera :  14x14/19x19mm size​
  • Motor : 2207/2306/2408
